Integrated Lighting Control System

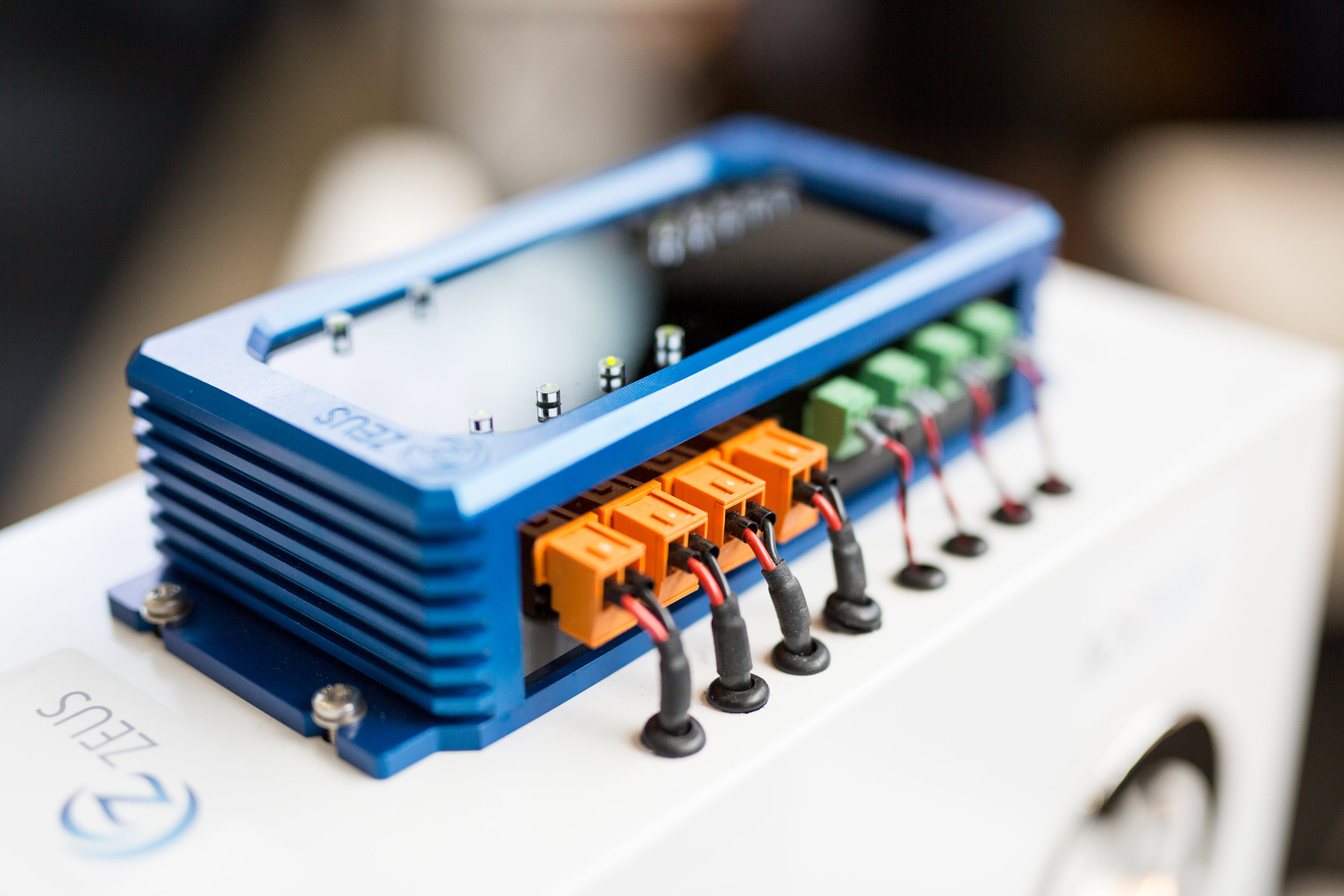

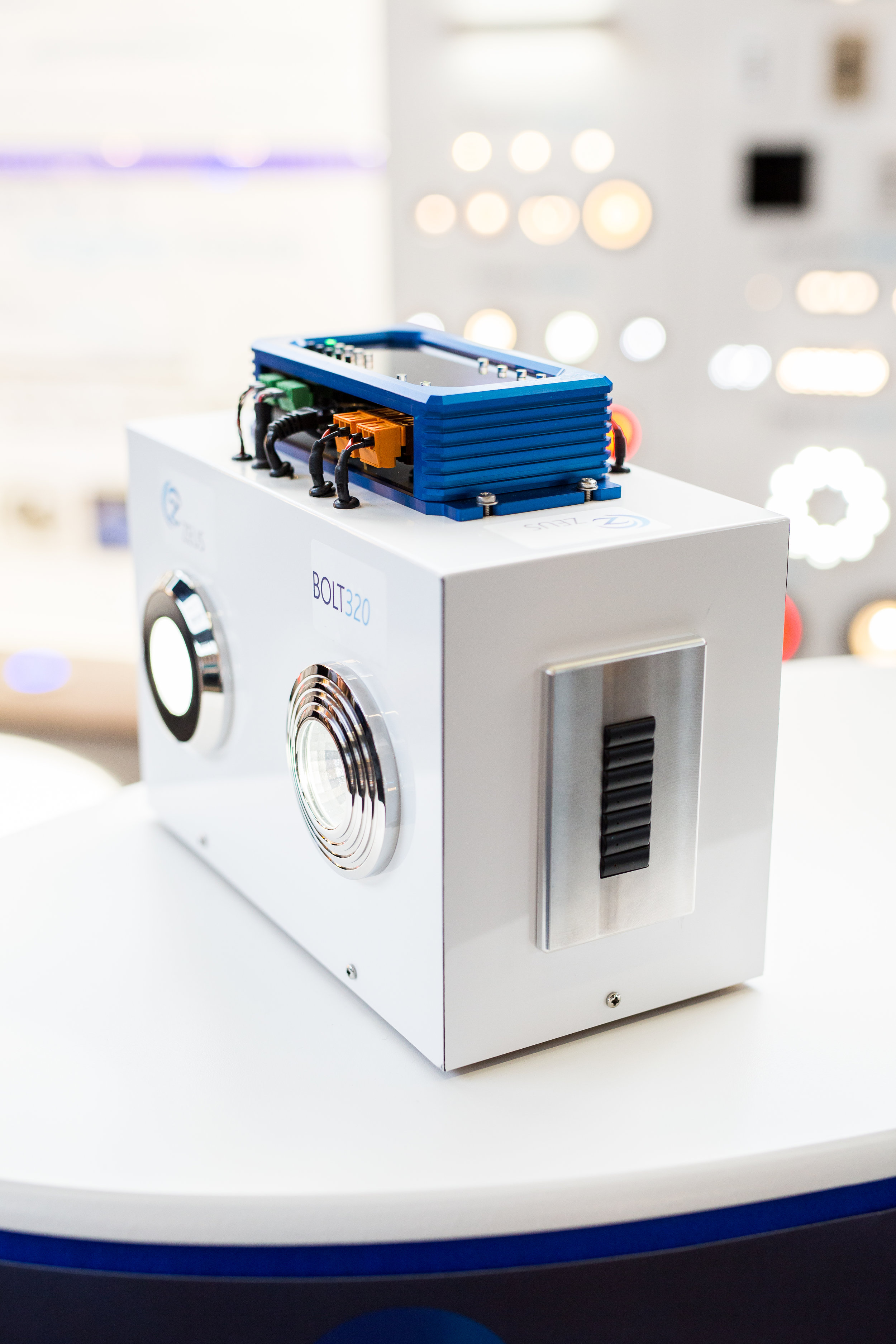

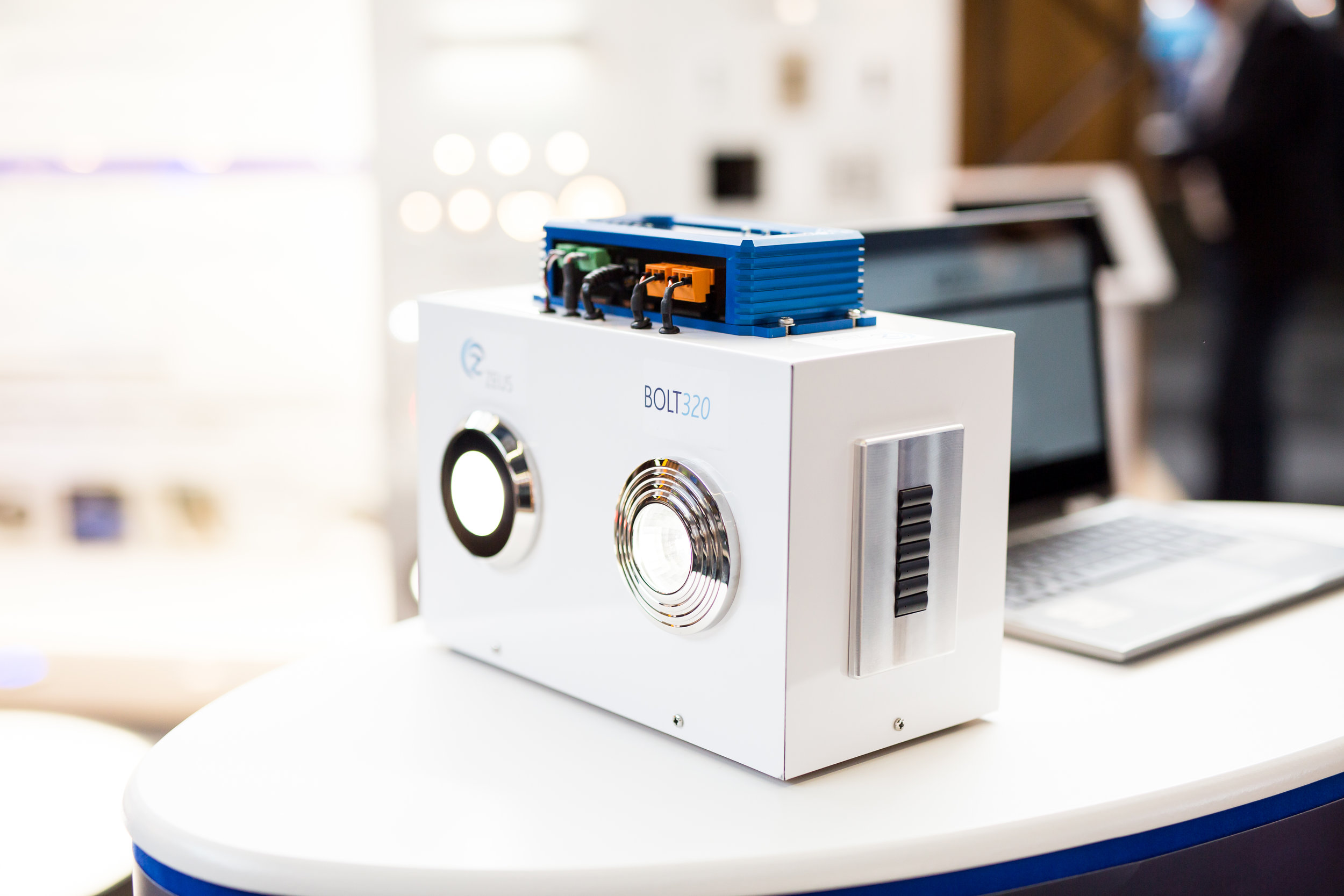

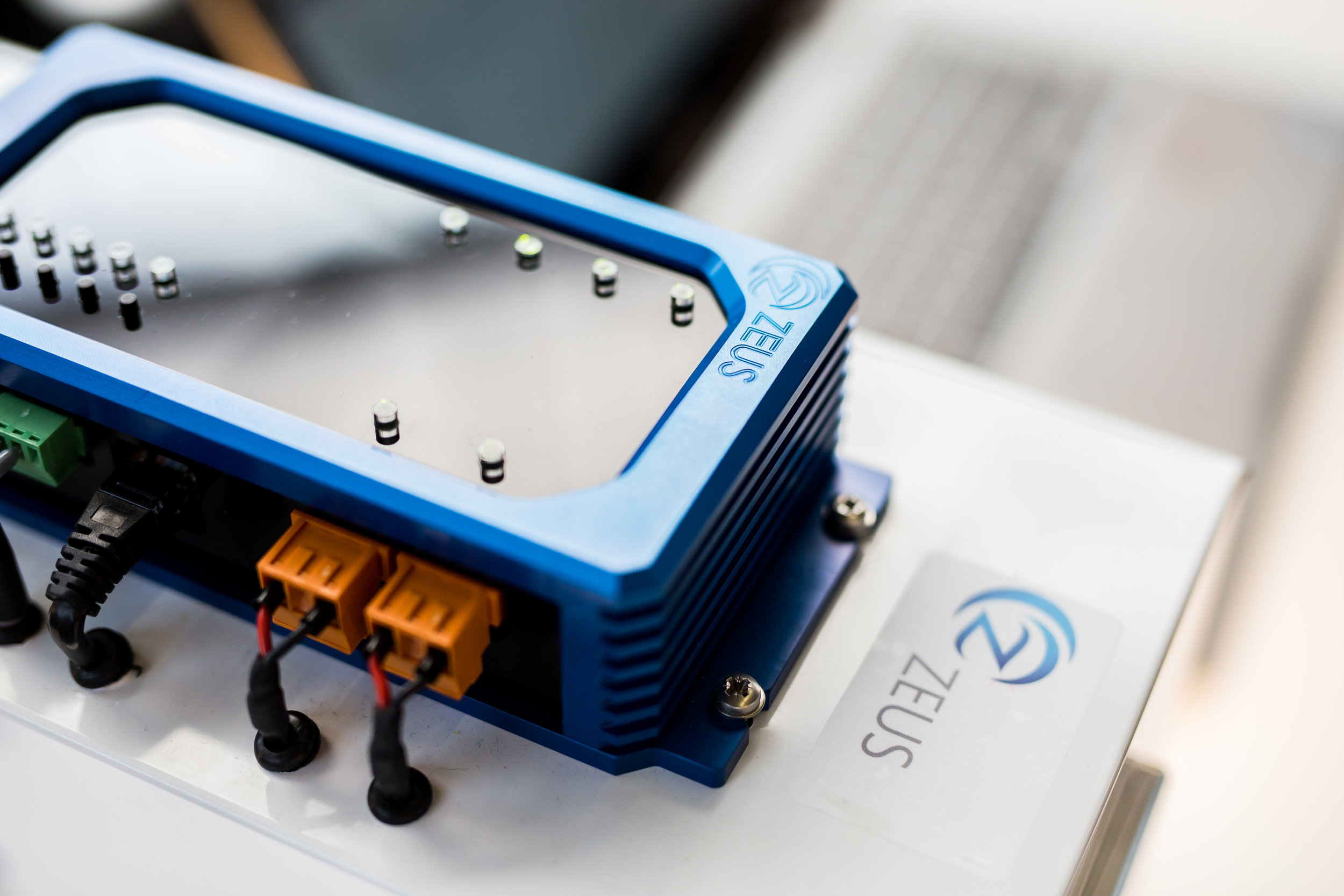

The BOLT 320 is a fully integrated lighting control system primarily designed for the control and dimming of LEDs. It is easy to install, easy to configure and easy to operate.


What does it do?

In short, it dims and controls LED lights. It provides lighting scene settings. It simplifies LED lighting integration. If you are looking to use the system with PWM, please go the BOLT 320-P.

What else?

It has been specifically designed for the marine industry. It supports emergency lighting. It provides real time scene and mood settings (meaning you can see what the setting actually looks like there and then). You can set the trim of the LED (so no more flickering when you dim below a certain level). And even better…you don’t need to be a lighting or engineering expert to install it. If you are? Great news, as control modules for integration with third-party control systems such as AMX, Crestron, Control and Savant, are also available!


BOLT 320 Facts

  • Four 0-10v industry standard dimming channels

  • Direct connection of LEDs with inbuilt drivers / external 0-10v compatible drivers

  • Connection via a simple low voltage 3 wire bus system

  • Incoming DC range 12v to 28v

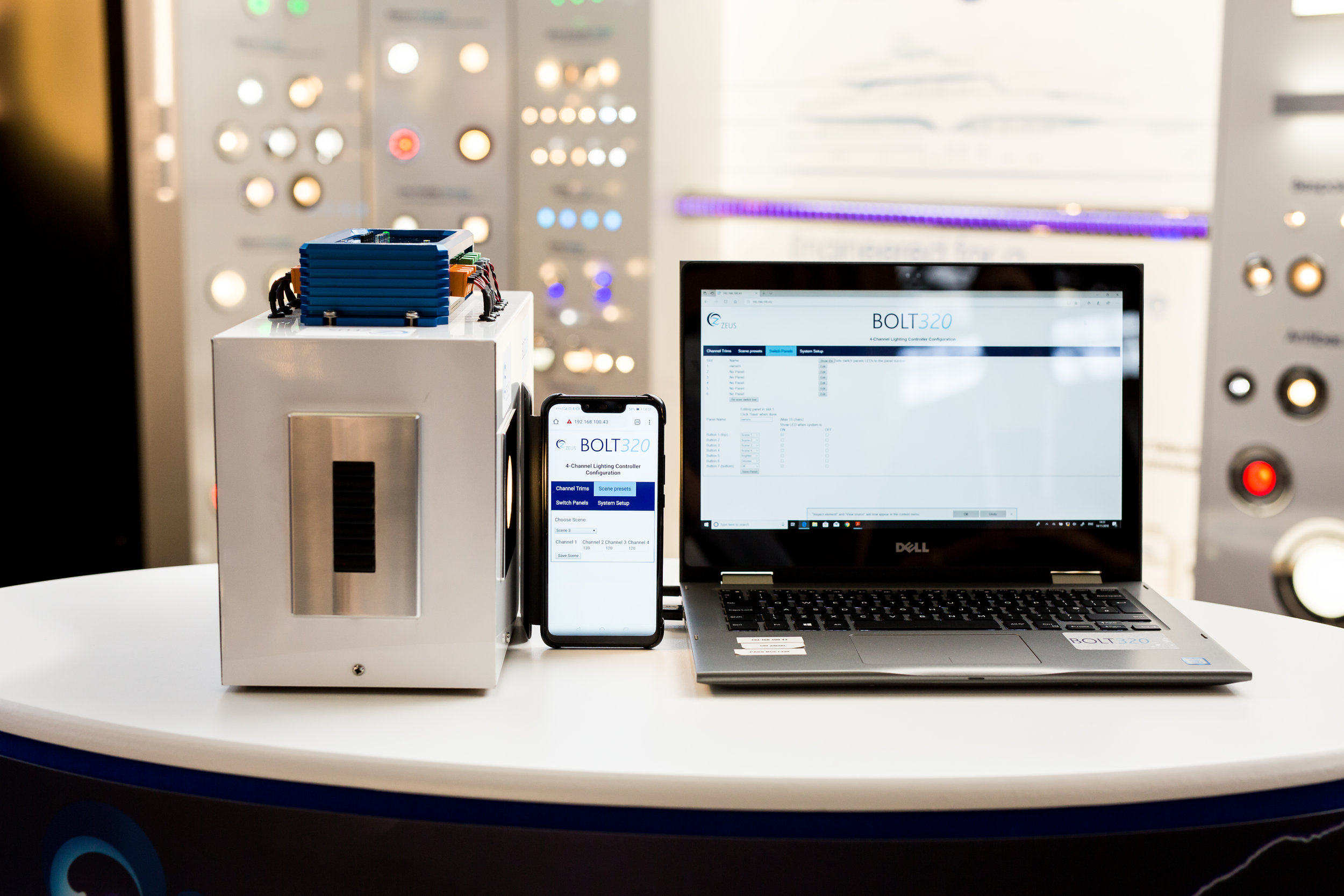

  • Configuration via simple web-based user interface

  • Conventional ethernet port for connection to third party control systems

  • In-built Wi-Fi for stand alone set up / configuration


BOLT 320 Features

  • Input for emergency lighting for automatic switch to emergency supply and lighting scene

  • Supports up to six Zeus Connect switches per controller

  • Scenes can be programmed for the switches

  • Scenes can be programmed for external I/O triggers and emergency setting

  • Self contained unit and modular

  • Integration to Crestron, Control 4, AMX and Savant




The BOLT 320 is from the BOLT product range. To find out more about the BOLT 320-P with PWM compatibility, please click HERE.

Product Partner

The Zeus Technology Partner behind the BOLT product range is Crest Systems. Their extensive experience in technical system integration and lighting and control systems form an integral part of the product design, technology and engineering. Read more.


Buy Now

The BOLT 320 is available to purchase directly from Savage Lighting Ltd. For more information please contact the sales team on +44 (0) 1455 614545 or email to sales@savagelighting.co.uk
